CSMB-12XDT512 - Low Cost Demo Board for the Freescale MC9S12XDT512
$99.00
SKU: CSMB-12XDT512

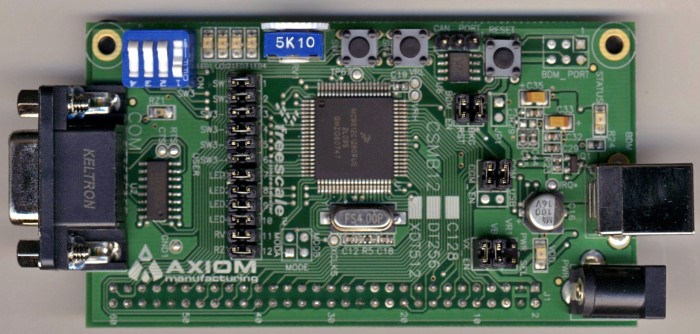

The CSMB12XDT512 is a demonstration board for the MC9S12XDT512 X Gate MCU. Application development is quick and easy with the TBDML compatible integrated USB BDM, sample software tools, and examples. An optional BDM_PORT port is also provided, but not populated in default configuration, to allow use of an external BDM cable. A 60-pin MCU Port connector provides access to all I/O signals on the target MCU.
-
MC9S12XDT512 in the 80 LQFP package.
- 512 KB Flash EEPROM
- 4 KB EEPROM
- 20 KB RAM
- X Gate Co Processor
- SAE J1850 Data Link Controller
- 8-ch, 10-bit, ATD w/ external trigger
- 8-bit Enhanced Capture Timer w/ IC, OC, and Pulse Accumulate capabilities
- 7-ch, 8-bit PWM
- 9 KBI inputs
- 56 GPIO
- 3 CAN Channels
- CAN 2.0 A/B PHY w/ 3-pos header
- 2 SCI & 2 SPI Channels
- Turbo BDM Light USB BDM - TBDML
- RS-232 transceiver w/ DB9 connector
- 4 MHz Clock Oscillator
- Low Voltage Reset Supervisor
-
Power Input Selection Header
- On-board 5V regulator
- TBDML compatible USB BDM
- Optional power Input / Output from ConnectorJ1
-
User Components Provided
- 1 DIP Switch, 4-pos
- 3 Push Button Switches: 2 User, RESET
- 5 LED Indicators: 4 User, +5V
-
Jumpers
- USER_EN
- PWR_SEL
- COM_EN
-
Connectors
- 60-pos pin-header providing access to MCU IO signals
- 2.0mm barrel connector power input
- 6-pin BDM interface connector
- 3-pos CAN interface connector
- DB9 connector
- Module Size 3.8” x 2.0”
- Power Input: +9VDC typical
Supplied with DB9 Serial Cable, USB A/B, Documentation (CD), and Manual
Price: $99.00
Weight: 2 lb
Dimensions: 6 in × 7 in × 3.5 in
