CSM-12C32 - Low Cost Evaluation Module for the Freescale MC9S12C32

$59.00
SKU: CSM-12C32

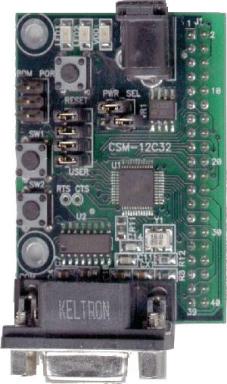

The CSM-12C32 is an evaluation or demonstration module for the Freescale MC9S12C32 microcontroller. The included wall plug, DB9 serial cable, sample software tools, examples, and debug monitor makes application development quick and easy. A background DEBUG port is provided for development tool use and is compatible with HCS12 BDM interface cables and software. A 40-pin connector allows the CSM-12C32 module to be connected to an expanded evaluation environment such as the Axiom Manufacturing, MCU Project Board.

  • MC9S12C32 MCU, 48 QFP
    • 32K Byte Flash EEPROM
    • 2K Bytes RAM
    • 31 I/O lines
    • Timer/PWM
    • SCI and SPI Communications Ports
    • Key Wake-up Port
    • BDM DEBUG Port
    • CAN 2.0 Module
    • Analog Comparator
    • 8 Mhz Internal Bus Operation Default
    • 25 MHz Bus Operation using internal PLL
  • Regulated +5V power supply w/ 2.0 mm Barrel Connector
  • Power Selection Jumper
    • Optional power input from Connector J1
    • Optional power output through Connector J1
  • 40 pin connector provides access to most MCU I/O signals
  • 16 MHz Ceramic Resonator
  • RS-232 Serial Port w/ DB9 Connector
  • 8-Ch, 10-bit, Analog Comparator with rail-to-rail operation and external trigger capability
  • 8-Ch, 16-bit Timer with Input Capture, Output Compare, and PWM capabilities
  • User Components Provided
    • 3 Push Button Switches: 2 User, RESET
    • 3 LED Indicators: 2 User, VDD
  • Jumpers
    • Disable User Functions
    • Power Select
  • Connectors
    • 40-pin MCU I/O Connector
    • 2.0mm Barrel Connector Power Input
    • DEBUG BDM Connector
    • DB9 Communications Connector
  • Module Size 2.2" x 1.6"
  • Power Input: +9VDC @ 200 mA typical, +6 to +16VDC range
Supplied with DB9 Serial Cable, Documentation (CD), Manual, and Wall plug type power supply.



Price: $59.00
Weight: 2 lb
Dimensions: 6 in × 7 in × 3.5 in
