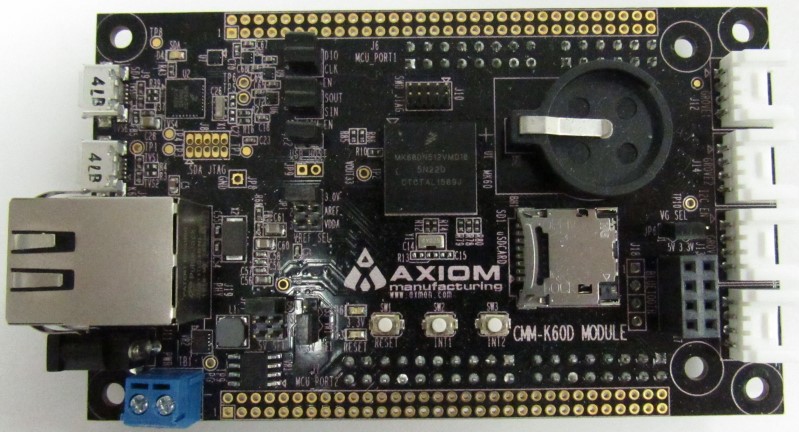

CMM-K60D-OEM Board with Arduino and Grove Connectors

CMM-K60D
CMM-K60D
$115.00
SKU: CMM-K60D

The CMM-K60D-OEM is an industrial rated module featuring the MK60DN512VMD microcontroller. This small form factor (2.36” / 60mm x 3.94” / 100mm) board is ideal for low cost evaluation, development, and industrial OEM embedded application where higher signal counts and features are suitable.

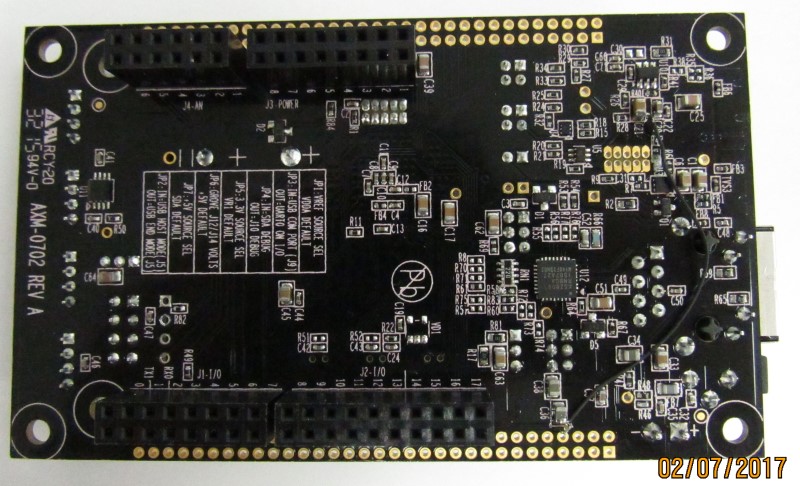

Quickly build your prototype without soldering by adding standard Grove Modules for sound, display, input, communications, etc. using the supplied on-board grove connectors.  Even more hardware modules can be added quickly using the fully compatible Arduino Shield connector on the back of the board.

Target Applications:

  • Industrial control • Industrial networking • HVAC systems/applications
  • Human-machine interface (HMI) • High-end lighting control • Health care devices
  • Fire and alarm systems/applications • Security panels • Internet Control Device (IOT)

Features:

MK60DN512 ARM Cortex-M4 MCU,144BGA Package:

  • 32 bit w/ DSP Instruction support
  • 100Mhz operation
  • 512K Byte Program Flash
  • 128K Byte SRAM
  • 10/100 Ethernet with IEEE 1588 support
  • USB 2.0 OTG Port
  • External Flex Bus
  • 6x UARTs, 3x SPI, 2x I2C Serial Ports
  • SDHC bus
  • I2S Bus
  • All GPIO with Interrupt Inputs
  • 4x PIT timers
  • 3x Flex Timers w/ PWM, Motor control
  • 2 x 16bit ADCs, 4x differential channels
  • 2 x 12bit ADCs multiple channels
  • 2 x 12bit DAC outputs
  • 5V tolerant I/O

Other Board Features:

  • uSDcard connector, up to 32G byte memory
  • 10/100TX Ethernet Port with RJ45 connector
  • USB OTG connector, host or endpoint modes
  • 2x User Push Switches
  • 2x User LED indicators
  • 50MHz Primary and 32Khz RTC Oscillator
  • SDA Development Interface w/ USB COM Port (UART0)
  • MCU I/O Ports, 2 x 64 pins, 2mm stack with all I/O **
  • Arduino / Freescale Shield I/O connectors (Bottom)
  • Grove I2C (2), AN, and I/O connectors.
  • JTAG / SWD Port, mini -10 connection
  • +5V to 28V input power supplies w/ indicator
  • RTC Battery support, CR1632 battery
  • Freescale SDK / MQX RTOS Board Support Package
  • Cables and Wall-Plug power optional

** = pins not populated by default, build option

Specifications:

  • Power Input: 1.3mm DC plug, Term Block, Stack, +4.75V to +28VDC.
  • Board Size: 2.36W x 3.94L x 0.6 H Inches, 0.1” (2.5mm) Mounting holes 2.0 x 3.75”.
Support Files:
Support Files:
Price: $115.00
Weight: 2 lb
Dimensions: 4 in × 2.4 in × 1 in
