CMM-54415

$260.00
SKU: CMM-54415

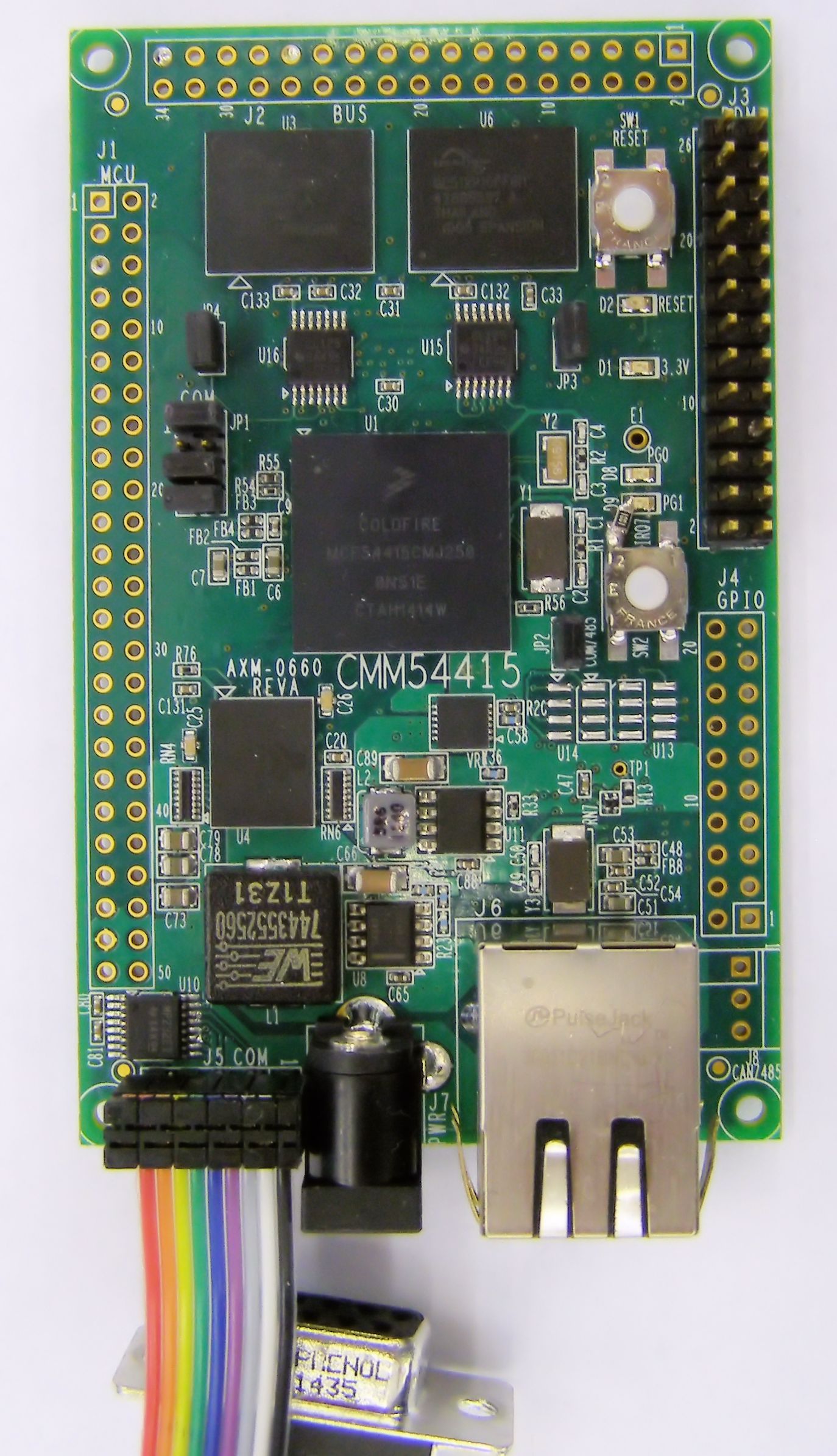

The CMM-54415-OEM is a module featuring the MCF54415 microcontroller. This small form factor (2.20”X3.5”) board is ideal for industrial OEM embedded application where low cost and small size are important.

Target Applications:

  • Industrial control • Industrial networking • HVAC systems/applications
  • Human-machine interface (HMI) • High-end lighting control • Health care devices
  • Fire and alarm systems/applications • Security panels • CMM-5235 upgrade / replacement

Features:

MCF54415 MCU, 256 MAPBGA Package

  • 32 bit w/ EMAC and MMU support
  • 250Mhz operation
  • 64K Byte single cycle SRAM
  • DDR, DDR2, Mobile DDR Controller
  • 10/100 Ethernet with IEEE 1588 support
  • 32 bit Data and Address Bus
  • 4x SPI  Serial ports
  • 2x I2C Serial Ports
  • 10x UART Serial Ports
  • 5x Interrupt Inputs
  • 4x PIT timers
  • 4x 32 bit Timers w/ DMA
  • 12 bit dual ADC, 8 channels
  • 8 channel PWM Timers
  • RTC clock with back-up option
  • BDM / JTAG Port
  • Internal Oscillator w/ PLL clocking
  • 3.3V / 1.2V operation

Other Board Features:

  • 128MByte DDR2 memory
  • 64M Byte 32 bit Parallel flash memory (Larger flash bulds available on request)
  • 10/100TX Ethernet Port with RJ45 connector
  • RESET and ABORT (IRQ7) push switches
  • 25MHz Primary and 32Khz RTC Oscillators
  • COM Port (UART0), IDE pin header w/ DSUB-9
  • CAN / 485 Port (CAN / UART9), 3 pin .1 inch friction lock
  • MCU I/O Port, 2 x 25 pins, .1 inch grid **
  • MCU Bus Port (64K x 8 bit), 2 x 17 pins, .1 inch grid**
  • BDM / JTAG Port, 26-pin Freescale standard
  • Regulated +3.3V / 1.8V / 1.2V power supplies w/ indicator
  • Board support package and Freescale MQX RTOS port
  • Cables  and Wall-Plug power optional

** = not populated, build option

CAN Bus or RS485 interface is a build option.

Specifications:

  • Power Input: 2.1mm DC plug, +6 to +30VDC, 12VDC @ 120ma typical.
  • Board Size: 2.2 W x 3.5 L x 0.6 H Inches



Price: $260.00
Weight: 2 lb
Dimensions: 1 in × 1 in × 1 in
