CMM-5235-OEM - Low Cost Production Module for the MCF5235

$216.00
SKU: CMM-5235-OEM

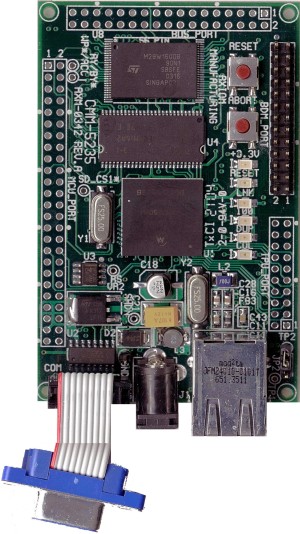

The CMM-5235 / M5235BCC is a low cost embeddable module in Business Card Controller (BCC) format for the Freescale MCF5235 Coldfire microcontroller. This product is a board only configuration meant for production use so it does not include development support accessories.

  • Processor
    • V2 ColdFire® core provides up to 144 MIPS @ 150 MHz
    • Data Encryption
    • eTPU with 16 I/O channels and 6 KB of SRAM
    • 32-bit non-multiplexed bus with up to eight chip selects
    • 64 KB internal SRAM
    • 8 KB of configurable I/D-Cache
    • 10/100 Mbps Fast Ethernet Controller
    • Three UARTs and one QSPI
    • I2C bus interface
    • Four-channel 32-bit timers with DMA
    • System Integration (PLL, SW watchdog)
  • 16MB SDRAM and 2MB Flash onboard
  • 25Mhz reference crystal, up to 100Mhz operation
  • BDM / JTAG debug connectors
  • COM Port (UART0) w/ RS232 DB9-S Connector
  • 10/100 Ethernet Port w/ RJ45 and status lights
  • 34-pin BUS, 50-pin MCU and 20-pin ETPU ports
  • CAN port w/ 1Mbaud transceiver on MCU connector
  • RESET and ABORT switches
  • Regulated +3.3V and +1.5V power supply w/ indicators
  • Board Size: 3.5 x 2.2 inches
  • Power Input: +5 - +30VDC, 9VDC typical
  • Current Consumption: 150ma @ 9VDC input



Price: $216.00
Weight: 2 lb
Dimensions: 6 in × 7 in × 3 in
