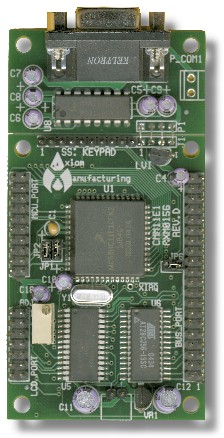

CMM-11E1 - Small Single Board Computer for the MC68HC11E1. 32K SRAM and 32K EEPROM. (board only)

$118.00
SKU: CMM-11E1

This product has limited availability and
the PRICE MAY BE HIGHER due to part shortages.

PLEASE CALL for pricing and availability before ordering.

The CMM-11E1 is a low cost, entry level development package. Development is quick and easy with the on board EEPROM, the optional DB9 cable and DOS based bootloader. The optional UTL11 disk contains Manuals, the Small C11 compiler and the S19 files for the Buffalo monitor. The on board EEPROM comes configured with the Buffalo Monitor. Basic 11 is not recommended for this board. For application code write code on a PC and using the menu driven bootloader, follow the simple bootload instruction, download, reset and run. No prom burner or special voltages required. Your code is safe and secure in nonvolatile memory.

  • MC68HC11E1 CPU
  • 512 Byte EEprom
  • 16 BIT Timer w/ 3 Capture, 5 Compare
  • Pulse Counter
  • 8 Channel 8 BIT A/D
  • SPI Serial Port
  • SCI Serial Port
  • RS-232 Serial Ports w/ DB9 Connector
  • Three I/0 Ports
  • HC11 Port A, D, E
  • 22 I/O Total, 7 Configurable, 11 Inputs, 4 Outputs
  • 32K SRAM
  • 32K EEPROM
  • Keypad / SPI interface w/ Header
  • LCD Module interface w/Header
  • Optional Contrast Adjust
  • Regulated Power Supply
  • Bus Expansion Port w/ 7 Chip Selects
  • Board Size 2.0 x 3.75 w/o RS232 2.0" x 2.75"
  • Power Input: +7 to +15v Standard
  • Current Consumption: 30 ma (typical) @8MHZ

This product has limited availability and
the PRICE MAY BE HIGHER due to part shortages.

PLEASE CALL for pricing and availability before ordering.

Price: $118.00
Weight: 2 lb
Dimensions: 6 in × 7 in × 3.5 in
